Dc12V Full color addressable 6.5mm width ws2811 Pixel RGB 2835 LED Strip 32pixels/m 96leds/m

Advantages:

1) stable 2835 RGB led lamp with copper bracket and mixed gold wire.
2) 2OZ pure copper PCB board with 5mm width -5meter long no voltage drop
3)Double membrance covering the FPCB board ,good protection,
4) Standard SPI protcel: ws2811 chipset -dual signal .
5)cutting unit:every 3Led (31.25mm),
7) Dc12V 10W/meter (max),
8) LED density: 96pcs RGB 2835 LED per meter ,
9) controller system: artnet or offline or online led controller

Describe:

- Control IC included, supporting numerous Color-change effects;
- Pcontrol by SD controller,Arduino,DMX512,Artnet;
- Flexible PCB 12V low voltage input;
- 96pcs RGB smd 2835 leds and 24 Pixels per meter;
- Absolutely addressable ,each IC control 3 leds
- 5M per roll,also Customer’s length available;

-ws2811 support 3channels, support 2835RGB led

-there is three line , Date and GND and DC12V+

Specification

Item	RL-STR-2811-2835RGB-32P-96-12V
LED Quantity	96leds/m
PCB thickness	5mm width,2 ounce copper( 2550um thinkness)
PCB Color	White PCB ,Black PCB optional
IC type	ws2811 (SPI protocel ,same work as ws2811,ws2812)
cutting unit	31.25cm
IP Rating	IP20/IP65/IP67/Ip68
Connector	3PIN JST-SM connector
Control Model	SPI control
Controller	T1000s/K1000c/H807SA/Arduino/Glediator/DMX/Artnet/Raspberry
Product Keywords	Narrow pixel led stirp ,2835 RGB led strip

Advantages

1. This is 12V pixel led strip , very narrow and suit for neon flex led tube .

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3. 12V working voltage ( 3leds with one IC with 12V)

4.2unce PCB board with double cooper layer(hongqi brand 25um50um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. Flexible PCB material . every 3LEDcan be cut with 12V,

7. 96leds per meter . 12V low voltage inputted , don’t over 12V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm GW: 12.5kg with nonwaterproof Ip20

Waterproof Rate:

IP20 Non-waterproof with 3M sticker on the back
IP65 waterproof is silicone gel on the surface
IP67: silicone tube/coating
IP68: silcone gel(or epoxy) inside silicone tube.

Connection guide

SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino.

(offline / PC online)

LED power suppply: power supply, T- series, A- series power supply...(waterproof / non-waterproof)

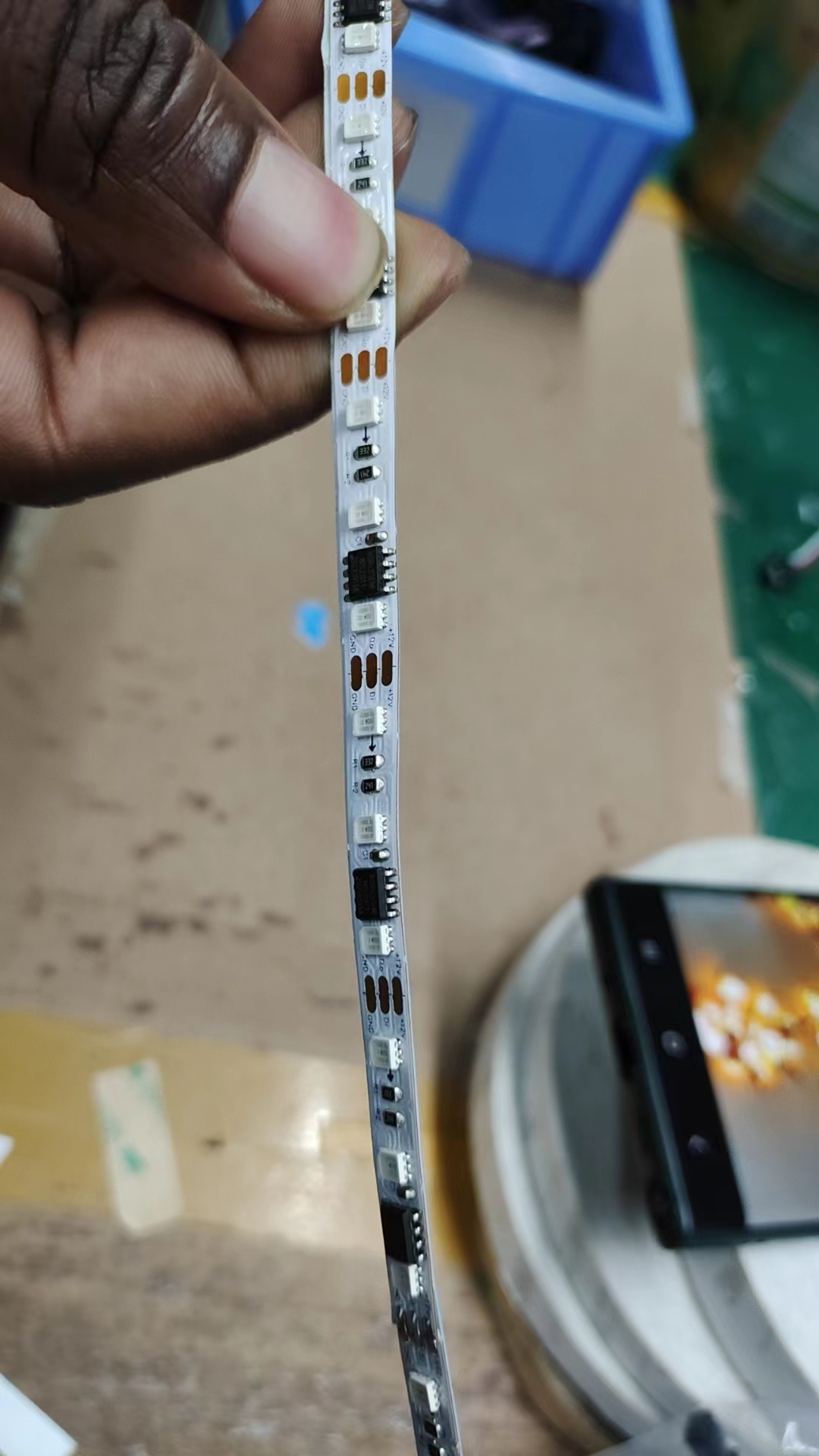

Real Picture

narrow pixel led strip.jpg

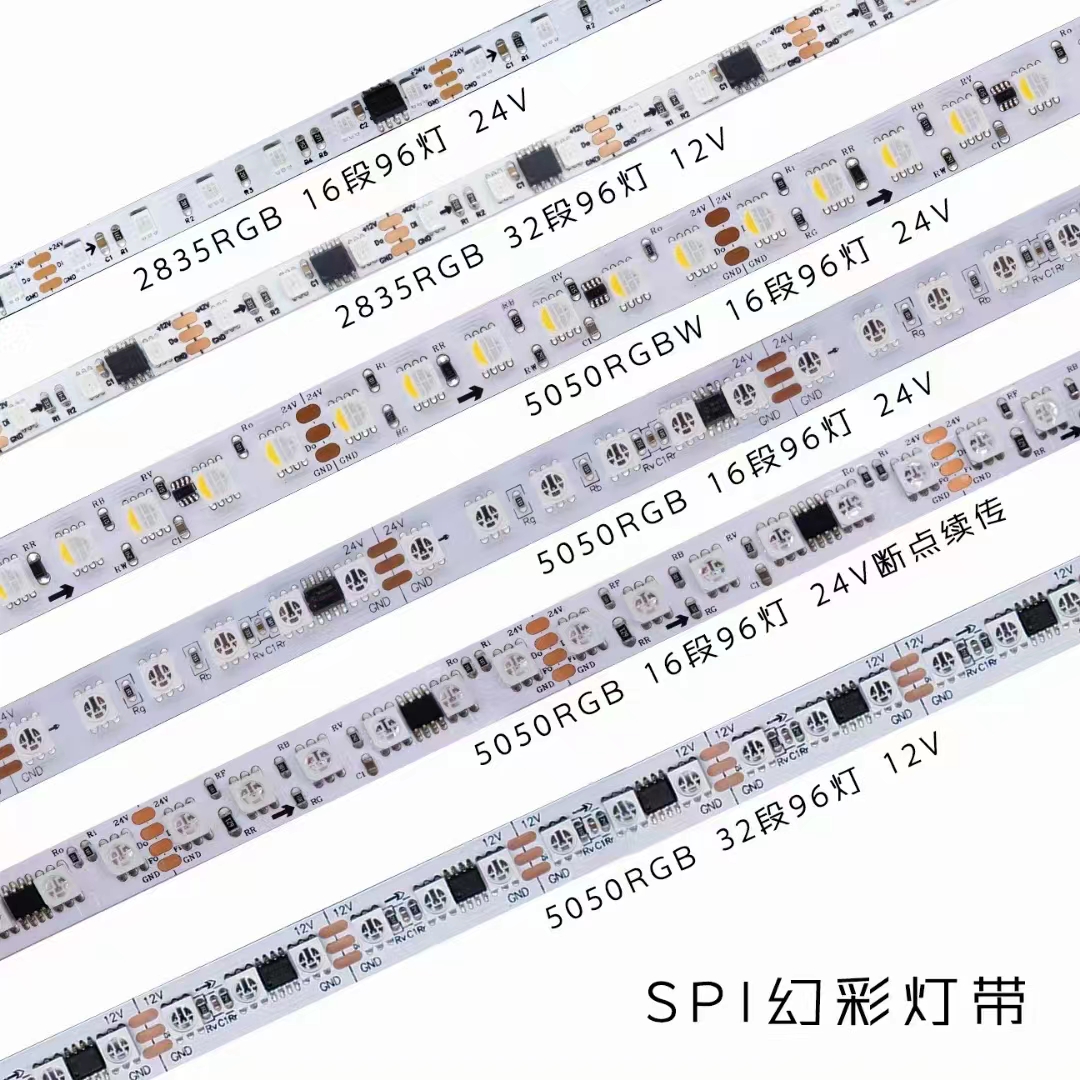

There is 96led per meter optional!

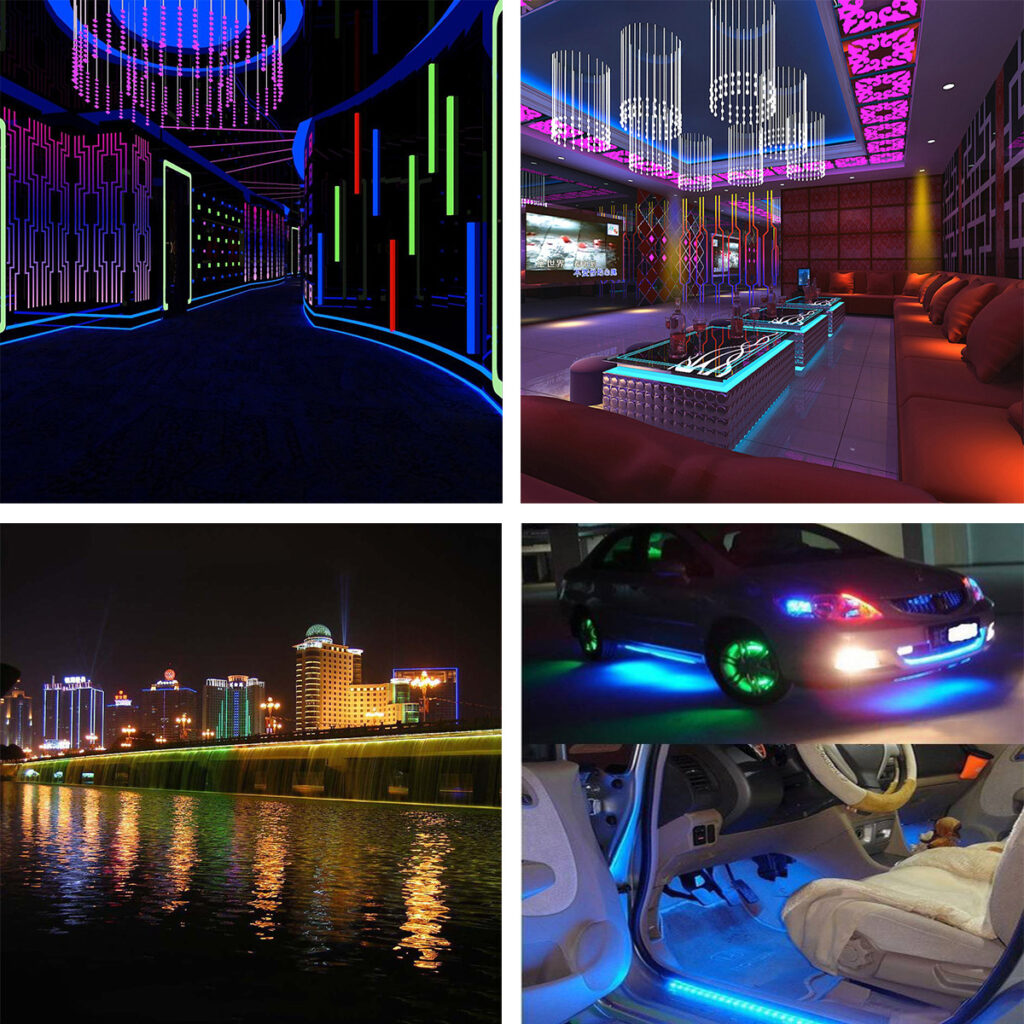

application
