Product Details

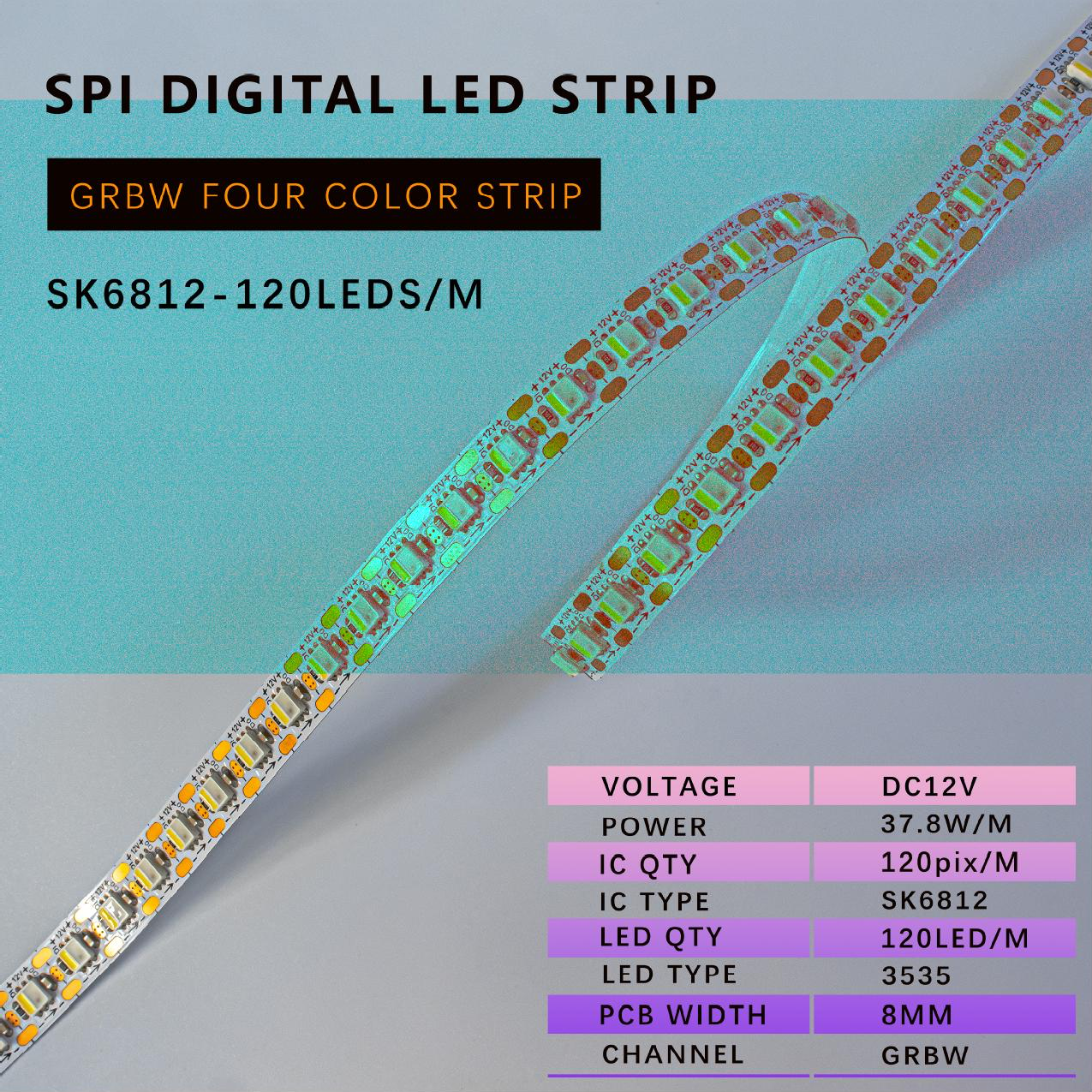

DC12V Individually addressable 3535 RGBW Pixel rgb led strip 120pixels/m with 8mm width

Advantages:

1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.Red copper bracket and pure gold wire RGBW led lamp,

4.High brightness LED lamp with luminous intensity(mcd)

R:700-1000 G:1500-2200 B:700-1000,

CCT for white optional from 2500K-12000K

5 hongqi brand 2OZ PFCB(35um cooper)with double cooper layer,

6. 2 sides membrane cover the PFCB. make sure the copper no drop from the pcb board ,

7. 144ledM . 5V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm GW: 12.5kg with nonwaterproof Ip20

Basis specification

Item name	DC12V Individually addressable 3535 RGBW Pixel rgb led strip 120pixels/m with 8mm width
LED source	RGBW smd 3535 LED
PCB width	8mm 2OZ copper thickness
Working voltage	DC5V
Watts/M	24W/M)
Brightness(MCD)	R:700 G:1500 B:500
warranty	2years
IP rate	IP20, IP65, IP67, IP68.
Led lighting angl	120°
PWM Rate	800HZ
